HEAVYWEIGHT FEATURES IN A LIGHTWEIGHT PACKAGE

アグレッシブなトレイルライダーの要求に応えるために特別に設計された新しいFLOAT Xは、洗練されたダンピングとフェードフリー性能、驚くべき軽量性と卓越した構造的な剛性を兼ね備えています。

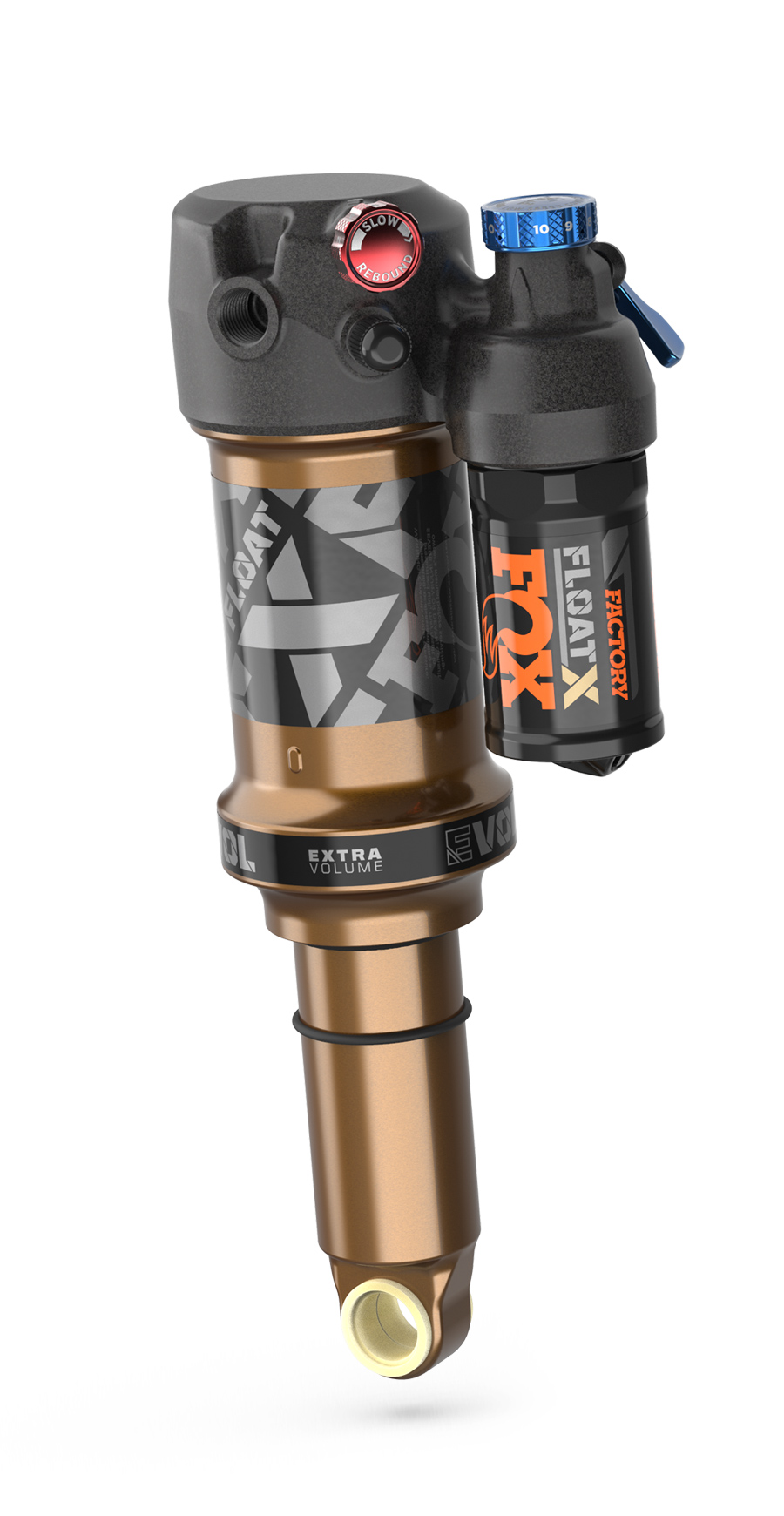

FLOAT X
FLOAT X
FLOAT X

HEAVYWEIGHT FEATURES IN A LIGHTWEIGHT PACKAGE

アグレッシブなトレイルライダーの要求に応えるために特別に設計された新しいFLOAT Xは、洗練されたダンピングとフェードフリー性能、驚くべき軽量性と卓越した構造的な剛性を兼ね備えています。

「Factory」は全てを物語っています‐ファクトリーレベルのライダーが求める以上の機能を満載、設計されています。
私たちが販売する製品は彼らがレースに参加するための製品。

Choose your eyelet:

(Metric sizes only)
floatx Standard Front
floatx Standard 3/4
floatx Standard side
floatx Standard Front
floatx Standard 3/4
floatx Standard side
36 Factory FIT4
36 Factory FIT4
36 Factory FIT4
SIZES
Metric 190 x 45 / 210 x 50 / 210 x 52.5 / 210 x 55 / 230 x 57.5 / 230 x 60 / 230 x 65 190 x 45
210 x 50
210 x 52.5
210 x 55
230 x 57.5
230 x 60
230 x 65
ADJUSTMENTS
Independent 2 Position Open/Firm Lever
Low Speed Rebound – 16 Clicks
Low Speed Compression – 11 Clicks
ALL FACTORY FLOAT X SHOCKS
Body finish Kashima Coat
Air sleeve finish Kashima Coat
SPECS & FAMILY FEATURES
ALL-NEW chassis and damper
High-flow main piston
Air seal package
Volume spacers with smaller increments
MCU bottom out bumper
Numbered tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
Independent firm mode circuit – Clockable 2 position adjuster
Increased rebound adjuster range (over DPX2)
Optimized reservoir lengths per shock size
Hydraulic top out feature
Reduced damper noise
Larger air sleeve bore reduces average rider pressure by 40 psi vs. DPX2
Bearing hardware compatible both sides
Air valve location offers improved frame fitment and pump access
36 Factory FIT4
36 Factory FIT4
36 Factory FIT4

Choose your eyelet:

(Metric sizes only)
floatx Standard Front
floatx Standard 3/4
floatx Standard side
floatx Standard Front
floatx Standard 3/4
floatx Standard side
36 Factory FIT4
36 Factory FIT4
36 Factory FIT4
SIZES
Trunnion Metric 185 x 52.5 / 185 x 55 / 205 x 60 / 205 x 62.5 185 x 52.5
185 x 55
205 x 60
205 x 62.5
ADJUSTMENTS
Independent 2 Position Open/Firm Lever
Low Speed Rebound – 16 Clicks
Low Speed Compression – 11 Clicks
ALL FACTORY FLOAT X SHOCKS
Body finish Kashima Coat
Air sleeve finish Kashima Coat
SPECS & FAMILY FEATURES
ALL-NEW chassis and damper
High-flow main piston
Air seal package
Volume spacers with smaller increments
MCU bottom out bumper
Numbered tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
Independent firm mode circuit – Clockable 2 position adjuster
Increased rebound adjuster range (over DPX2)
Optimized reservoir lengths per shock size
Hydraulic top out feature
Reduced damper noise
Larger air sleeve bore reduces average rider pressure by 40 psi vs. DPX2
Bearing hardware compatible both sides
Air valve location offers improved frame fitment and pump access
36 Factory FIT4
36 Factory FIT4
36 Factory FIT4

パフォーマンスエリートは、ファクトリーシリーズと同様の調整機能、ダンパー、重量を維持しつつ、スタンションをカシマコートからブラックアルマイトに変更したショックです。

Eyelet:

(Metric sizes only)
FLOAT DPS Performance Standard Front
FLOAT DPS Performance Standard 3/4
FLOAT DPS Performance Standard side
FLOAT DPS Performance Standard Front
FLOAT DPS Performance Standard 3/4
FLOAT DPS Performance Standard side
SIZES (3-position Lever)
Metric 210 x 55 / 210 x 50 210 x 55
210 x 50
ADJUSTMENTS
Independent 2 Position Open/Firm Lever
Low Speed Rebound – 16 Clicks
Low Speed Compression – 11 Clicks
ALL PERFORMANCE FLOAT DPS SHOCKS
Body finish Black Anodized
Air sleeve finish Black Anodized
SPECS & FAMILY FEATURES
ALL-NEW chassis and damper
High-flow main piston
Air seal package
Volume spacers with smaller increments
MCU bottom out bumper
Numbered tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
Independent firm mode circuit – Clockable 2 position adjuster
Increased rebound adjuster range (over DPX2)
Optimized reservoir lengths per shock size
Hydraulic top out feature
Reduced damper noise
Larger air sleeve bore reduces average rider pressure by 40 psi vs. DPX2
Bearing hardware compatible both sides
Air valve location offers improved frame fitment and pump access
36 Factory FIT4
36 Factory FIT4
36 Factory FIT4

Eyelet:

(Metric sizes only)
FLOAT DPS Performance trunnion Front
FLOAT DPS Performance trunnion 3/4
FLOAT DPS Performance trunnion side
FLOAT DPS Performance trunnion Front
FLOAT DPS Performance trunnion 3/4
FLOAT DPS Performance trunnion side
SIZES (3-position Lever)
Metric 210 x 55 / 210 x 50 210 x 55
210 x 50
ADJUSTMENTS
Independent 2 Position Open/Firm Lever
Low Speed Rebound – 16 Clicks
Low Speed Compression – 11 Clicks
ALL PERFORMANCE FLOAT DPS SHOCKS
Body finish Black Anodized
Air sleeve finish Black Anodized
SPECS & FAMILY FEATURES
ALL-NEW chassis and damper
High-flow main piston
Air seal package
Volume spacers with smaller increments
MCU bottom out bumper
Numbered tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
Independent firm mode circuit – Clockable 2 position adjuster
Increased rebound adjuster range (over DPX2)
Optimized reservoir lengths per shock size
Hydraulic top out feature
Reduced damper noise
Larger air sleeve bore reduces average rider pressure by 40 psi vs. DPX2
Bearing hardware compatible both sides
Air valve location offers improved frame fitment and pump access
36 Factory FIT4
36 Factory FIT4
36 Factory FIT4
