COIL PERFORMANCE FOR THE TRAIL AND BEYOND
幅広い設定が可能なトレイルをスムースに変えてしまう性能を、あなたの走る様々なフィールドやその先の未来へもたらします。
「Factory」は全てを物語っています‐ファクトリーレベルのライダーが求める以上の機能を満載、設計されています。私たちが販売する製品は彼らがレースに参加するための製品。
| SIZES | |
|---|---|
| Metric |
210 x 50 210 x 52.5 210 x 55 230 x 57.5 230 x 60 230 x 65 |
| ADJUSTMENTS |
|---|
| Independent 2 Position Open/Firm Lever |
| Low Speed Rebound – 16 Clicks |
| Low Speed Compression – 11 Clicks |
| Coil spring preload - (new detents on spring collar) |
| ALL FACTORY DHX2 SHOCKS | |
|---|---|
| Shaft Coating | Chromoly - Ultra-low friction, highly durable damper shaft finish |
| VVC Rebound | Yes |
| Detents on spring collar | Yes |
| SPECS & FAMILY FEATURES |
|---|
| ALL-NEW chassis and damper |
| High-flow main piston |
| Numbered Tool-free 12 position single-turn LSC (Low Speed Compression) adjuster |
| Independent firm mode circuit – 2 position adjuster |
| Optimized reservoir lengths per shock size |
| Hydraulic top out feature |
| Reduced damper noise |
| MCU bottom out bumper |
| Single-turn rebound adjuster with a variety of access modes (Tool-free, 3mm hex (direct access), 2mm hex or similar (side access) |
| Spring preload collar with detents and max / min number of clicks and direction arrow |
| Full diameter spring retainer with wire ring (like DHX2) |
| Spring scuff guard on body (like DHX2) |

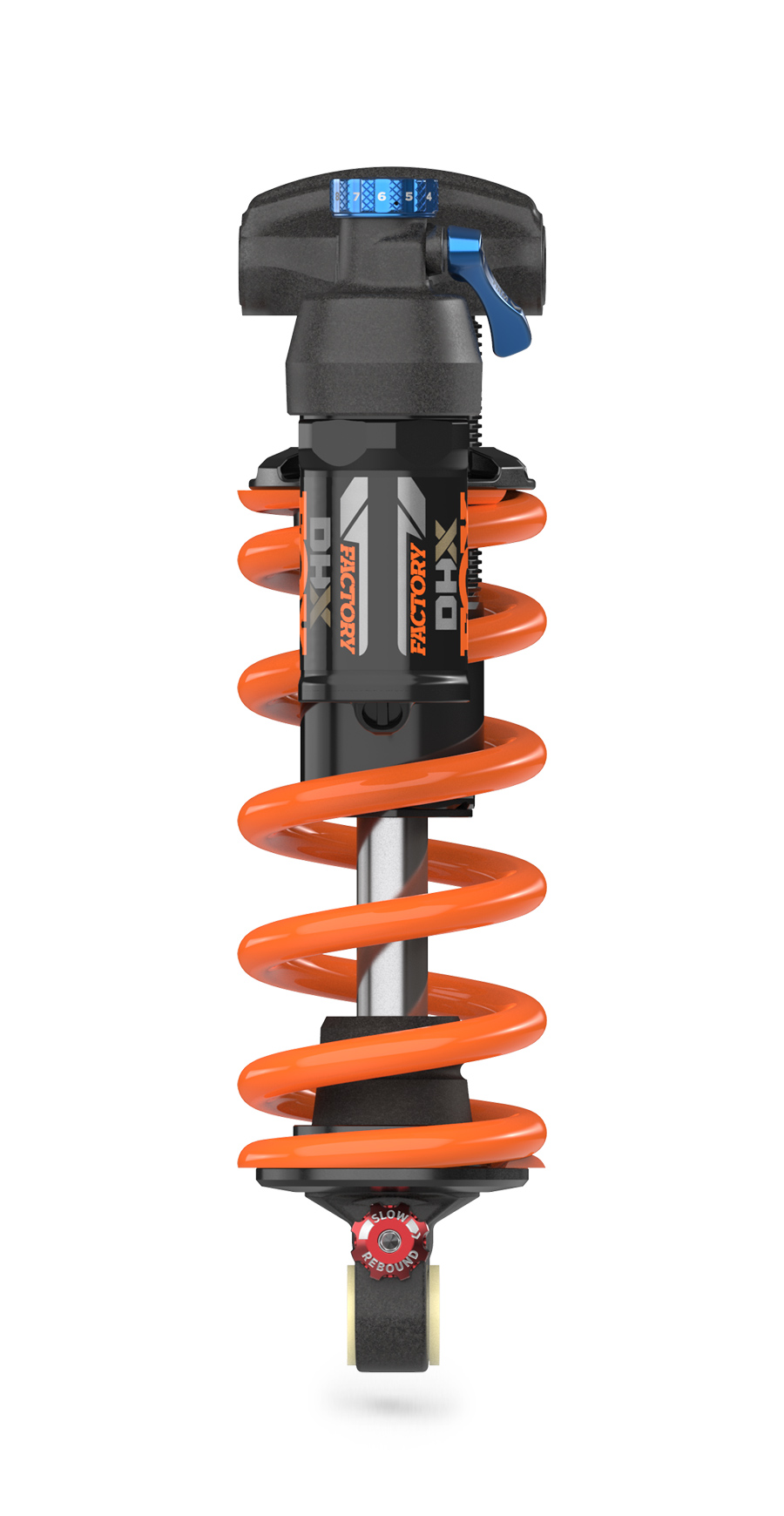

| SIZES | |
|---|---|
| Trunnion Metric |
185 x 52.5 185 x 55 205 x 60 205 x 62.5 |
| ADJUSTMENTS |
|---|
| Independent 2 Position Open/Firm Lever |
| Low Speed Rebound – 16 Clicks |
| Low Speed Compression – 11 Clicks |
| Coil spring preload - (new detents on spring collar) |
| ALL FACTORY DHX2 SHOCKS | |
|---|---|
| Shaft Coating | Chromoly - Ultra-low friction, highly durable damper shaft finish |
| VVC Rebound | Yes |
| Detents on spring collar | Yes |
| SPECS & FAMILY FEATURES |
|---|
| ALL-NEW chassis and damper |
| High-flow main piston |
| Numbered Tool-free 12 position single-turn LSC (Low Speed Compression) adjuster |
| Independent firm mode circuit – 2 position adjuster |
| Optimized reservoir lengths per shock size |
| Hydraulic top out feature |
| Reduced damper noise |
| MCU bottom out bumper |
| Single-turn rebound adjuster with a variety of access modes (Tool-free, 3mm hex (direct access), 2mm hex or similar (side access) |
| Spring preload collar with detents and max / min number of clicks and direction arrow |
| Full diameter spring retainer with wire ring (like DHX2) |
| Spring scuff guard on body (like DHX2) |
